Air Preparation Filters

Main Line Filter AFF
Mist Separator AM
Micro Mist Separator AMD

・Compressed Air Purity Class: ISO 8573
・Increase in an air flow capacity due to lower pressure drop contributing
　to energy saving
　Flow capacity: 14.5 m3/min (ANR)
　　Increased by up to 20% compared with the current model
　Pressure drop: 5 kPa or less

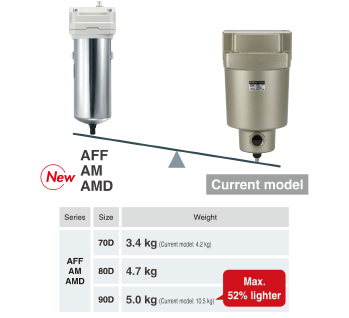

・Lightweight: Max. 52% lighter (10.5kg→5.0kg)
　Light body weight to thinner stainless steel bowl.
・Space-saving design, Labor-saving in piping!
　The AFF series main line filter removes both water droplets and solid particles.
　A separate filter for removing water droplets (water separator, AMG
　series) is not necessary any more. Space and piping work are reduced.
・Easier replacement of the element
　Stopper function prevents the bowl from falling.

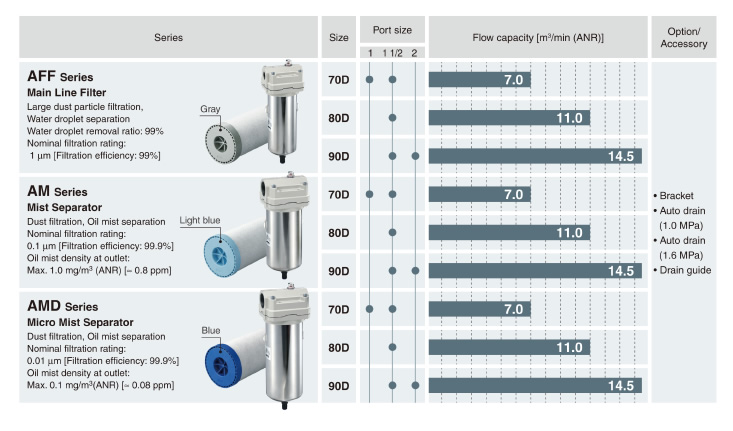

Type	Series	Filtration (μm)	Air flow（m3/min［ANR］）	Port size
Main Line Filter	AFF	1.0 (Filtration efficiency 99%)	7 to 14.5	1,1/2, 2
Mist Separator	AM	0.1 (Filtration efficiency 99%)	7 to 14.5	1,1/2, 2
Micro Mist Separator	AMD	0.01 (Filtration efficiency 99.9%)	7 to 14.5	1,1/2, 2

Features

■Variations

A model with 11.0 m3/min flow capacity (Size 80D) has been newly added. Morechoices are available depending on the customer’s required flow rate.

■Space-saving design, Reduced piping labor!

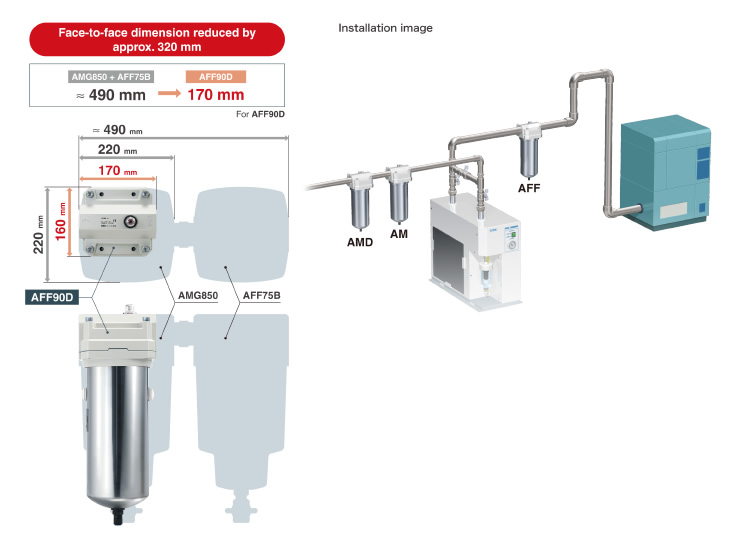

The AFF series main line filter removes both water droplets and solid particles. It eliminates＊ the need for a separate filter for removing water droplets (water separator, AMG series), thus greatly reducing the face-to-face dimension and also reducing the required installation space and piping work.
＊When using within the product's specification range

■Lightweight

Lighter body weight due to thinner stainless steel bowl Easier installation

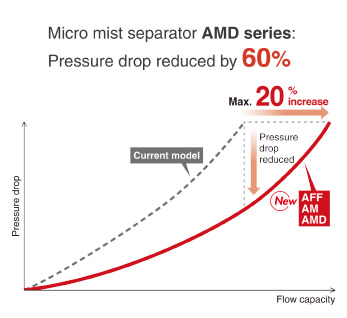

■Increased air flow capacity due to
　lower pressure drop which
　contributes to energy saving

Flow capacity: 14.5 m3/min (ANR)
Pressure drop: 5 kPa or less
20%UP　For AFF/AM/AMD90D

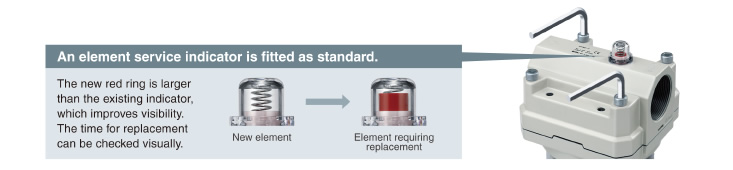

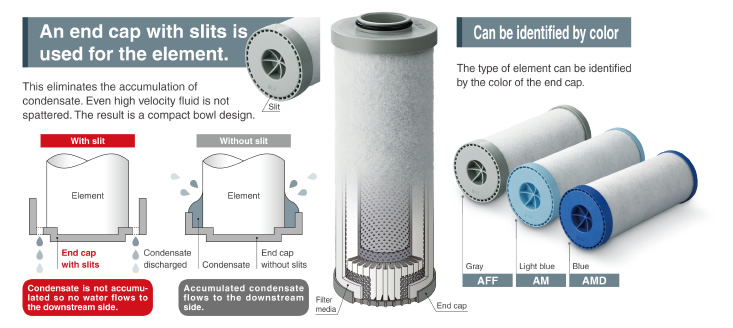

■Easier replacement of the element

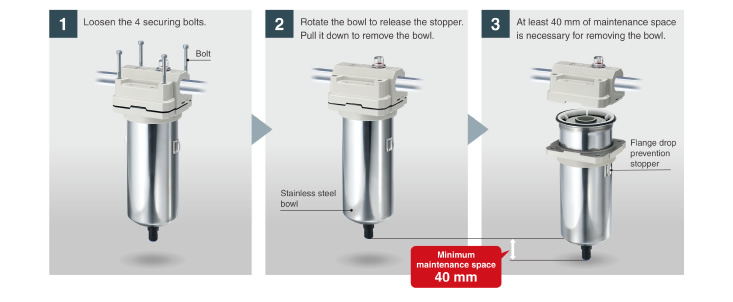

The stopper function prevents the bowl from falling.

The bowl will not fall even if the bolts are loosened. It is not necessary to hold the bowl when removing the bolts. Safe and secure mounting and removing of the bowl with both hands is possible. The lightweight stainless bowl with reduced thickness allows for easier element replacement.
